Beispiel-CSV
| Month | Average Rainfall (mm) |
|---|---|
| Jan | 146 |
| Feb | 109 |
| Mar | 97 |
| Apr | 66 |
| May | 44 |
| Jun | 39 |
| Jul | 18 |
| Aug | 25 |
| Sep | 41 |
| Oct | 88 |
| Nov | 158 |
| Dec | 152 |
How to Create a Polar Area Chart
A step by step walkthrough for turning a spreadsheet of cyclical categories into a published polar area chart in PlotSet, from shaping the sheet to adding a scale and exporting the finished rose.
Etwa 8 MinutenA spreadsheet of months, hours or compass directions is the starting point for how to create a polar area chart in PlotSet, ending with a published circular chart that carries a real scale, not just a decorative rose. Not a screenshot of someone else's rose chart, your own data, run through the same click path a PlotSet chart takes from upload to publish.
If your spreadsheet is already two columns, category and value, in the order you want them to appear around the circle, this takes about eight minutes. Add another five if you're reordering a report that came out sorted by value, or renaming months so they match a calendar year instead of a fiscal one. Budget the eight minutes below and treat the rest as a buffer.
Die Daten, die Sie brauchen
Two columns, one row per sector, listed in the order you want them to appear around the circle. Category first, number second, one header row. No totals row, no sorting by value.
List categories in the order they should sit around the circle. PlotSet places rows starting near the top and moving clockwise, so a resorted or alphabetized sheet breaks a cycle like the calendar.
Keep the value column free of negative numbers. A polar area chart has no direction below the centre to draw a sector in, so a negative value either gets clipped or throws off the whole scale.
Delete any totals or subtotals row before uploading. A stray "Total" row becomes a sector of its own, usually the longest one, and it wrecks the radial scale for every other category.
Blank cells in the value column render as a zero-length sector rather than being skipped. Fill them in or remove the row before you upload.
Die Schritte
Der genaue Klickpfad in PlotSet, von einer leeren Vorlage bis zum fertigen Diagramm.
- 01
Start the Polar Area Chart template
From the PlotSet dashboard, start a new project and choose the Polar Area Chart template (listed as the radial polar bar template in the library). It loads with twelve sample sectors already in place, so you can see the column layout before swapping in your own file.
Jede Anleitung beginnt hier. Wählen Sie erst die Kategorie, dann die Vorlage. Das Raster ist für jeden Diagrammtyp dasselbe. - 02
Shape your sheet into two columns, in cycle order
Category in the first column, its number in the second, one row per sector. Order the rows the way you want them to read around the circle: January through December, midnight through 11pm, or north through northwest. PlotSet plots rows in sheet order; it does not infer a calendar or a clock face for you.
- 03
Upload your file or connect a sheet
Import a CSV or .xlsx file from the data panel, paste rows straight from a spreadsheet, or connect a Google Sheet if you want the chart to update later without a re-upload. PlotSet reads the first row as headers automatically.
Die Datenansicht, hier in einem Balkendiagramm-Projekt. Laden Sie über "Upload CSV File" eine CSV-Datei hoch, holen Sie die Zahlen mit "Magic Import" aus einem Bild oder verbinden Sie ein Google Sheet. Der Bereich sieht bei jedem Diagrammtyp gleich aus. - 04
Map the category and value columns
Confirm which column feeds the angular position and which feeds the radius. This is usually automatic when your headers are clear, but worth checking manually if your sheet carries extra columns PlotSet had to guess at.
Die Zuordnungen legen fest, welche Spalte zur Beschriftung wird, welche die Werte liefert und welche die Farbe steuert. "Auto Binding" errät sie anhand Ihrer Spaltenüberschriften. Prüfen Sie das Ergebnis, statt sich darauf zu verlassen. - 05
Leave the sort alone
Unlike a bar chart, resist switching this to sort by value. Sorting breaks the cycle you built into the row order, putting December next to July instead of January. If your categories genuinely have no natural order, a bar chart will serve the comparison better than forcing them into a circle.
- 06
Turn on radial gridlines and label the scale
Add the concentric rings and label at least two of them with real values. Without a visible scale, a reader can see which sector is biggest but has no way to convert a radius into a number, and the chart stops doing a chart's job.
- 07
Style one colour and add sector labels
A single series gets one consistent colour, same reasoning as a bar chart: colour isn't carrying any information here. Turn on labels at the outer edge of each sector so the exact value is readable without measuring against the rings, since the area exaggerates differences more than a straight bar would.
Der Tab "Preview" für ein Diagramm vom Typ "Polar Area Chart". Alle Gestaltungsoptionen stecken im umrandeten Bereich: Aussehen, Kopfzeile, Fußzeile und die Optionen, die es speziell für diesen Diagrammtyp gibt, jeweils in einem eigenen Tab. - 08
Publish, embed or export the finished rose
Publish for a live interactive chart with hover tooltips and a shareable link, grab the embed code to drop it into a page, or export a PNG, SVG or PDF if you need a static image for a deck or report.
Starten Sie mit der Polar Area Chart-Vorlage samt bereits geladenen Beispieldaten und ersetzen Sie diese durch Ihre eigenen.
Vorlage öffnenVeröffentlichen, einbetten oder exportieren
Der letzte Abschnitt ist bei jedem Diagrammtyp gleich: "Share" macht aus dem Diagramm einen öffentlichen Live-Link und einen Einbettungscode, "Export" schreibt es als statische Datei heraus.

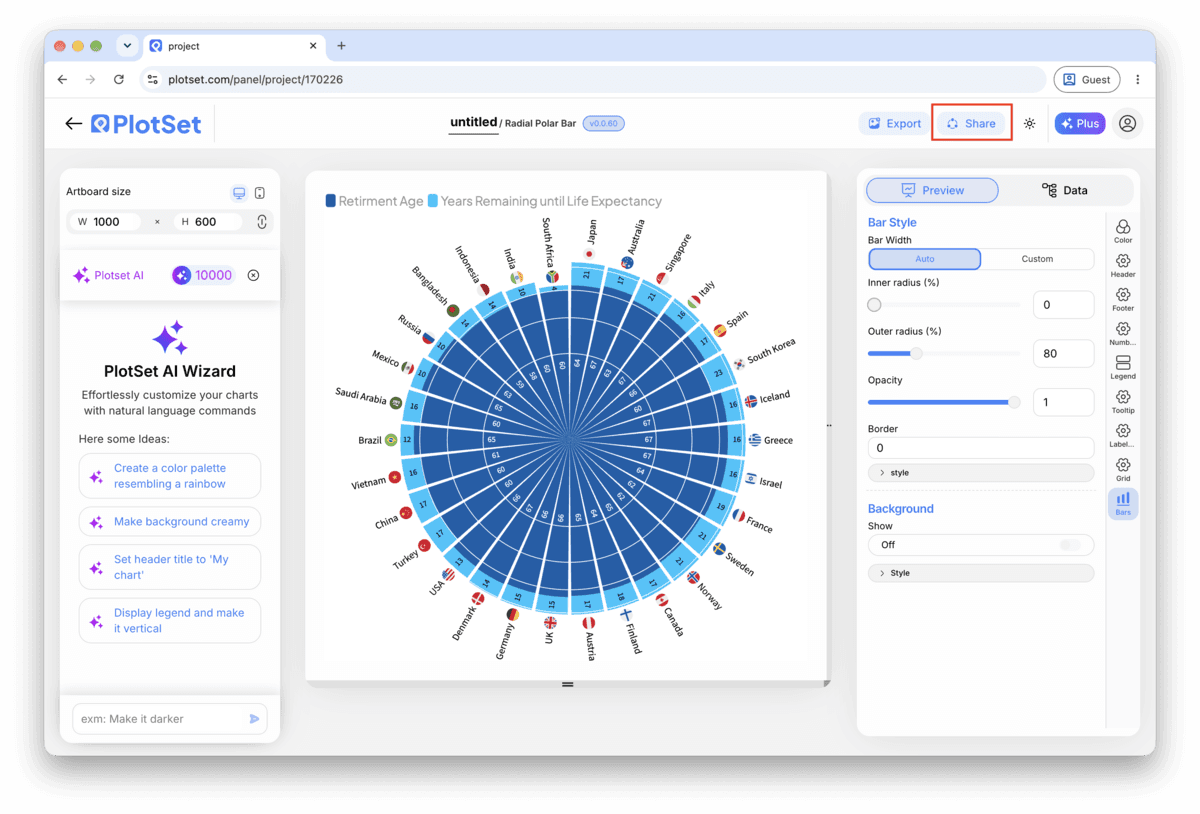

"Share": öffentlicher Link und Einbettungscode
Aktivieren Sie den Einbettungscode und den öffentlichen Link, um das Diagramm zu veröffentlichen. Den Link können Sie bedenkenlos an alle weitergeben, und der Einbettungscode fügt sich als iframe in jede Seite ein. Die Tooltips beim Überfahren mit der Maus und die volle Interaktivität bleiben erhalten. Wenn Sie das Diagramm später bearbeiten, überträgt "Recreate" die Änderungen auf Link und Einbettung.

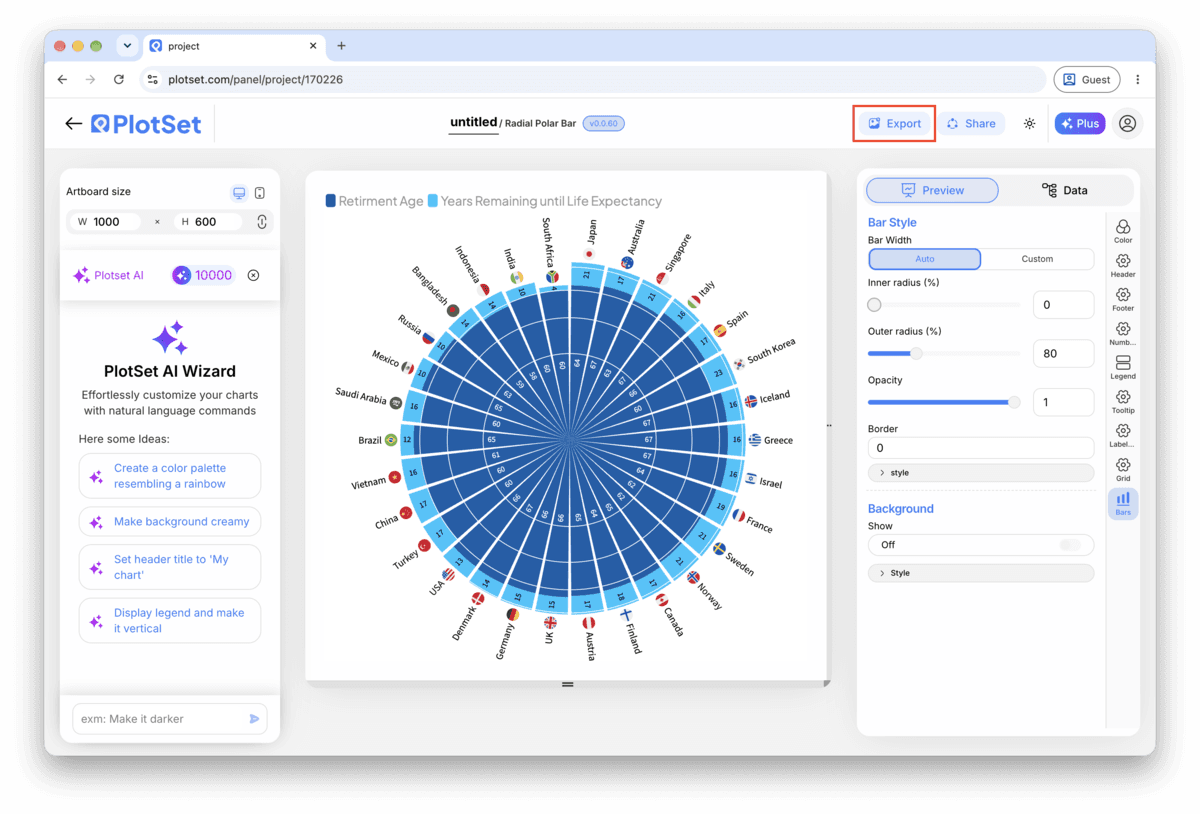

"Export": SVG, PNG oder JPG
"Export" schreibt eine statische Kopie in der Größe heraus, die Sie brauchen. SVG bleibt in jeder Skalierung scharf und lässt sich weiterhin in einem Design-Tool bearbeiten; PNG und JPG sind die sichere Wahl für Folien und Dokumente. Der Skalierungsfaktor sorgt dafür, dass das Bild auf einem Retina-Display gestochen scharf wirkt.
Styling-Tipps für Polar Area Chart
Keep it to categories that actually cycle
Months, hours, compass directions, days of the week. If your categories don't have a natural loop, the circle implies a relationship between neighbours that isn't real, and a sorted bar chart will tell the same story more clearly.
Cap it around twelve sectors
Twelve months work well because each label still has room to breathe. Past about a dozen sectors, labels start colliding at the outer edge, and the rose turns into a solid blob near the centre where the radii sit close together.
Start the radius at zero, always
Radius is the encoding here, exactly like a bar's length is the encoding on a bar chart. A truncated scale exaggerates every sector, and since area already grows faster than radius, a non-zero start compounds the distortion instead of fixing anything.
Print the numbers, don't rely on the shape
Because area scales with the square of the radius, two sectors that differ by twenty percent in value can look twice as different by eye. Turn on value labels so the reader isn't left estimating from the picture alone.
Häufige Fehler bei Polar Area Chart
The sectors are sorted by value and the cycle is gone
This is usually the sort control defaulting to descending, the same setting that helps a bar chart and ruins a polar area chart. Open the sort setting in the chart settings and switch it back to the sheet's own row order.
The chart looks good but nobody can read a value off it
This means the radial gridlines are off or unlabeled. Turn them on and label at least two rings with real numbers, otherwise the circle is decoration, not a chart.
Labels overlap at the outer edge
Usually too many sectors for the space; past about fifteen categories the labels start colliding no matter how the chart is sized. Group the smallest categories into an "Other" sector, or move to a bar chart if every category needs its own visible label.
Mehr über Polar Area Chart erfahren
Nicht sicher, ob Polar Area Chart die richtige Wahl ist? Erfahren Sie, was es ist, wann Sie es verwenden sollten und wann nicht.
Polar Area Chart: häufige Fragen
Two columns and one header row: category names in the first column, one number per category in the second, listed in the order you want them to appear around the circle. CSV and .xlsx both work, and a pasted range from any spreadsheet tool is fine too.
